Review of Sunwind 27

Both the hull and the deck is made of fibreglass. Generally, a hull made of fibreglass requires only a minimum of maintenance during the sailing season. And outside the sailing season, just bottom cleaning and perhaps anti-fouling painting once a year - a few hours of work, that's all.

The deck is a sandwich construction which improves the indoor climate. Especially when the water is colder than the air in the cabin, then the double hull insulates against cold water and reduce the condense water in the cabin.

The interior is like most other boats made of teak. Teak has the advantage of being naturally very oily and therefore water-repellent, which is suitable on boats.
The boat is equipped with 2 cabins, 5 berths, a galley, 75.0 liter fresh water capacity, toilet facility and 50.0 liter waste water capacity.

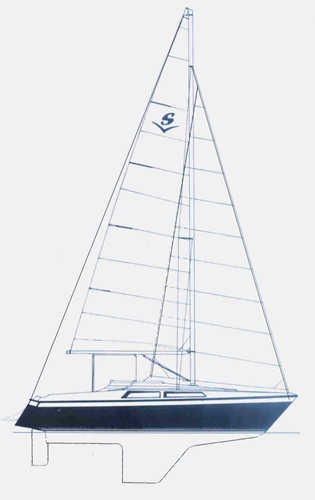

The Sunwind 27 is equipped with a fractional rig. A fractional rig has smaller headsails which make tacking easier, which is an advantage for cruisers and racers, of course. The downside is that having the wind from behind often requires a gennaker or a spinnaker for optimal speed.

The Sunwind 27 has been built with different keel alternatives.

Fin keel

One option is a fin keel. A boat with a fin keel is more manoeuvrable but has less directional stability than a similar boat with a full keel.

The keel is made of iron. Many people prefer lead keel in favour of iron. The main argument is that lead is much heavier than iron and a lead keel can therefore be made smaller which again result in less wet surface, i.e. less drag. In fact iron is quite heavy, just 30% less heavy than lead, so the advantage of a lead keel is often overstated. As the surface of a fin type keel is just a fraction of the total wet surface, the difference between an iron keel and a lead keel can in reality be ignored for cruising yachts.

The boat can enter most marinas as the draft is just about 1.55 - 1.65 meter (5.09 - 5.39 ft) dependent on the load. See immersion rate below.

Fin keel

Another option is a fin keel. The fin keel is the most common keel and provides splendid manoeuvrability. The downside is that it has less directional stability than a long keel.

This keel is also made of iron.

Sunwind 27 can enter most marinas as the draft is just about 1.55 - 1.65 meter (5.09 - 5.39 ft) dependent on the load. See immersion rate below.

The Sunwind 27 has been equipped with different engine alternatives.

Alternative 1:

The boat may be equipped with an inboard Volvo Penta MD5B diesel engine at 7 hp (5 kW). The speed is 6.0 knots.

The transmission is a saildrive.

Alternative 2:

The boat may be equipped with an inboard Volvo Penta 2001 diesel engine

The transmission is a saildrive.

The fuel tank, which is made of stainless steel, has a capacity of 50.0 liters (13 US gallons, 10 imperial gallons).

What is Capsize Screening Formula (CSF)?

The capsize screening value for Sunwind 27 is 1.86, indicating that this boat could - if evaluated by this formula alone - be accepted to participate in ocean races.

What is Theoretical Maximum Hull Speed?

The theoretical maximal speed of a displacement boat of this length is 6.2 knots. The term "Theoretical Maximum Hull Speed" is widely used even though a boat can sail faster. The term shall be interpreted as above the theoretical speed a great additional power is necessary for a small gain in speed.

The immersion rate is defined as the weight required to sink the boat a certain level. The immersion rate for Sunwind 27 is about 112 kg/cm, alternatively 629 lbs/inch.
Meaning: if you load 112 kg cargo on the boat then it will sink 1 cm. Alternatively, if you load 629 lbs cargo on the boat it will sink 1 inch.

What is Motion Comfort Ratio (MCR)?

The Motion Comfort Ratio for Sunwind 27 is 18.7 - 23.8.

What is L/B (Length Beam Ratio)?

The l/b ratio for Sunwind 27 is 3.16.

What is a Ballast Ratio?

The ballast ratio for Sunwind 27 is 39%.

What is Displacement Length Ratio?

The DL-ratio for Sunwind 27 is 259 which categorizes this boat among 'light crusers & offshore racers'.

What is SA/D (Sail Area Displacement ratio)?

The SA/D for Sunwind 27 with ISO 8666 reference sail is 14.4, with a 135% genua the SA/D is 16.4.

What is Relative Speed Performance?

The Relative Speed Performance for Sunwind 27 is 42

When buying anti-fouling bottom paint, it's nice to know how much to buy. The surface of the wet bottom is about 20m² (215 ft²).
Based on this, your favourite maritime shop can tell you the quantity you need.

Note: If you use a paint roller you will need more paint than if you use a paintbrush.

Dimensions of sail for fractional rig.

Are your sails worn out? You might find your next sail here: Sails for Sale

If you need to renew parts of your running rig and is not quite sure of the dimensions, you may find the estimates computed below useful.
