Review of Najade 900


Basic specs.

sail specifications

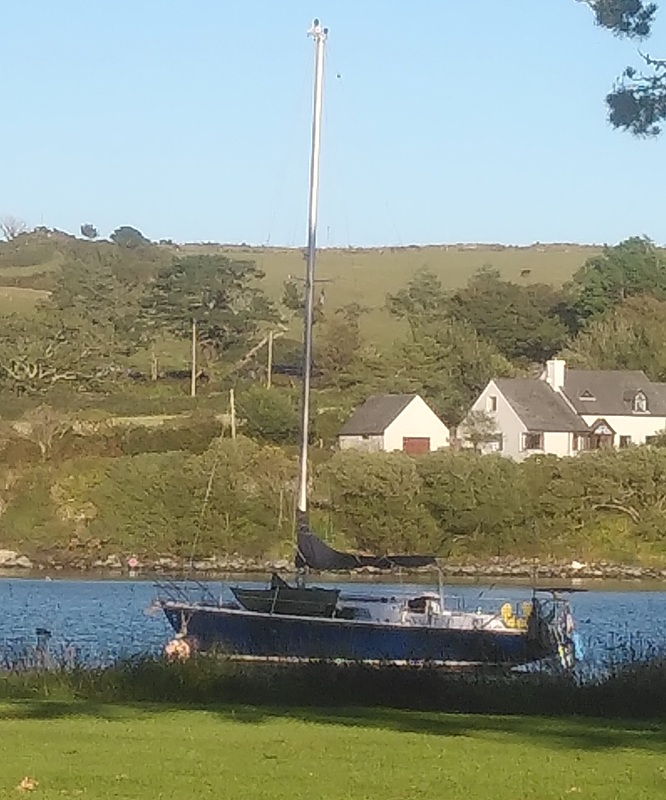

The Najade 900 is a sailboat designed by the maritime architect W. Jenneskens. The Najade 900 is built by the German yard Genzel.

Here we would have liked to show you nice photos of the Najade 900.
If you have a photo you would like to share: Upload Image

Looking for a new boat? Find a Najade 900 or similar boat for sale

Interior

The interior is like many other boats made of mahogany. Mahogany belongs to the hardwood species, known for being water-repellent and resistant to decay. It has an attractive wood grain and holds wood polish and varnish well.
The boat is equipped with 3 cabins, 6 berths, a galley, 280.0 liter fresh water capacity and toilet facility.

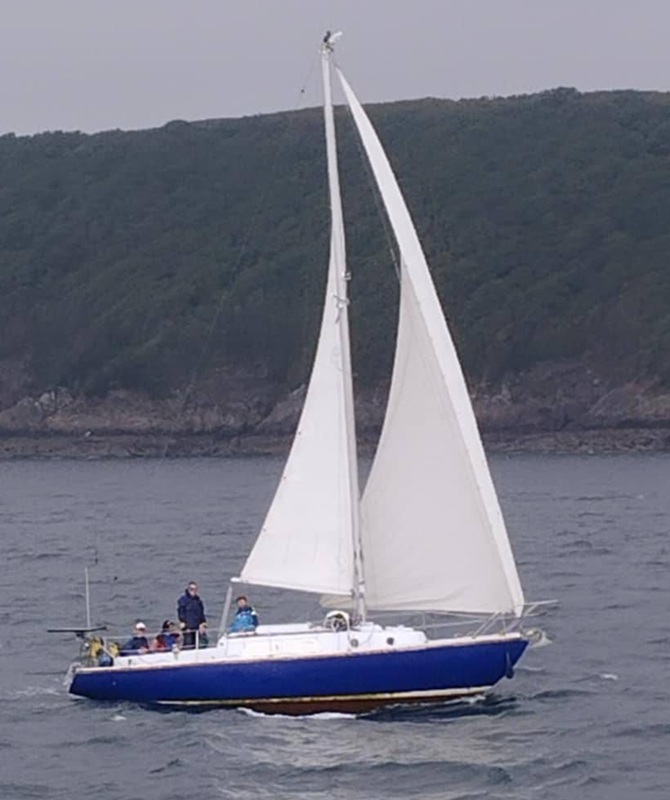

Rig

The Najade 900 is equipped with a masthead rig. The advantage of a masthead rig is its simplicity and the fact that a given sail area - compared with a fractional rig - can be carried lower and thus with less heeling moment.


Keel

Fin keel

The Najade 900 is equipped with a fin keel. The fin keel is the most common keel and provides splendid manoeuvrability. The downside is that it has less directional stability than a long keel.

The boat can enter most marinas as the draft is just about 1.50 - 1.60 meter (4.92 - 5.22 ft) dependent on the load. See immersion rate below.


Engine

Najade 900 may be equipped with an inboard Farymann diesel engine at 9 hp (6 kW). Calculated max speed is about 3.8 knots

The transmission is a shaft drive. A shaft drive will in the long run require less maintenance than other types of drive e.g. a sail drive.


Sailing characteristics

This section covers widely used rules of thumb to describe the sailing characteristics. Please note that even though the calculations are correct, the interpretation of the results might not be valid for extreme boats.

Stability and Safety

What is Capsize Screening Formula (CSF)?

The capsize screening value for Najade 900 is 1.96, indicating that this boat could - if evaluated by this formula alone - be accepted to participate in ocean races.


Theoretical Maximum Hull Speed

What is Theoretical Maximum Hull Speed?

The theoretical maximal speed of a displacement boat of this length is 6.4 knots. The term "Theoretical Maximum Hull Speed" is widely used even though a boat can sail faster. The term shall be interpreted as above the theoretical speed a great additional power is necessary for a small gain in speed.


Immersion rate

The immersion rate is defined as the weight required to sink the boat a certain level. The immersion rate for Najade 900 is about 135 kg/cm, alternatively 758 lbs/inch.
Meaning: if you load 135 kg cargo on the boat then it will sink 1 cm. Alternatively, if you load 758 lbs cargo on the boat it will sink 1 inch.


Sailing statistics

This section is statistical comparison with similar boats of the same category. The basis of the following statistical computations is our unique database with more than 26,000 different boat types and 350,000 data points.

Motion Comfort Ratio

What is Motion Comfort Ratio (MCR)?

The Motion Comfort Ratio for Najade 900 is 23.3.

Low High 50% 0 50 100
Comparing this ratio with similar sailboats show that it is more comfortable than 50% of all similar sailboat designs. This is an average comfort value!


L/B (Length Beam Ratio)

What is L/B (Length Beam Ratio)?

The l/b ratio for Najade 900 is 3.09.

Slim Wide 50% 0 50 100
Compared with other similar sailboats it is more spacy than 50% of all other designs. It seems that the designer has chosen an average hull design.


D/L (Displacement Length Ratio)

What is Displacement Length Ratio?

The DL-ratio for Najade 900 is 303 which categorizes this boat among 'medium weight cruisers'.

Heavy Light 27% 0 50 100
27% of all similar sailboat designs are categorized as heavier. A heavy displacement combined with smaller water plane area has lower acceleration and is more comfortable.


SA/D (Sail Area Displacement ratio)

SA/D (Sail Area Displacement ratio)
Indicates how fast the boat is in light wind:
- Cruising Boats have ratios 10-15
- Cruiser-Racers have ratios 16-20
- Racers have ratios above 20
- High-Performance Racers have ratios above 24
Sail-area/displacement ratio (SA/D ratio): 17.47


Maintenance

Bottom Paint

When buying anti-fouling bottom paint, it's nice to know how much to buy. The surface of the wet bottom is about 23m2 (247 ft2).
Based on this, your favourite maritime shop can tell you the quantity you need.

Note: If you use a paint roller you will need more paint than if you use a paintbrush.


Rig

If you need to renew parts of your running rig and is not quite sure of the dimensions, you may find the estimates computed below useful.



Guiding dimensions of running rig
UsageLengthDiameter
Jib sheet 9.1 m(29.9 feet)12 mm(1/2 inch)
Genoa sheet9.1 m(29.9 feet)12 mm(1/2 inch)
Mainsheet 22.8 m(74.8 feet)12 mm(1/2 inch)
Spinnaker sheet20.1 m(65.8 feet)12 mm(1/2 inch)

Boat owner's ideas

This section is reserved boat owner's modifications, improvements, etc. Here you might find (or contribute with) inspiration for your boat.

Do you have changes/improvements you would like to share? Upload a photo and describe what you have done.



Finally

We are always looking for new photos. If you can contribute with photos for Najade 900 it would be a great help.

If you have any comments to the review, improvement suggestions, or the like, feel free to contact us. Criticism helps us to improve.
