Review of Maxi 108
Basic specs.
Looking for a new boat? Find a Maxi 108 or similar boat for sale
Both the hull and the deck is made of fibreglass. Generally, a hull made of fibreglass requires only a minimum of maintenance during the sailing season.
The deck is a double deck which improves the indoor climate.

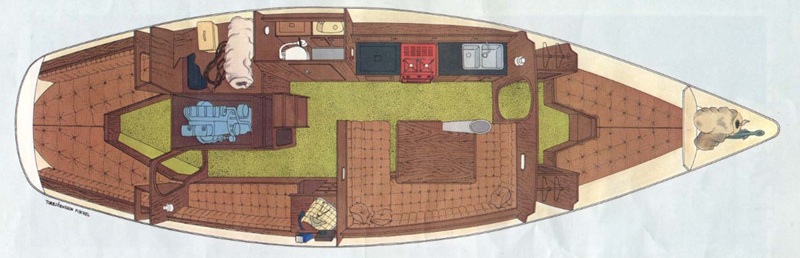

The interior is like most other boats made of teak. Teak has the advantage of being naturally very oily and therefore water-repellent, which is suitable on boats.
The boat is equipped with 7 berths, a galley, 200.0 liter fresh water capacity and toilet facility.
The Maxi 108 is equipped with a masthead rig. The advantage of a masthead rig is its simplicity and the fact that a given sail area - compared with a fractional rig - can be carried lower and thus with less heeling moment.
The Maxi 108 has been built with different keel alternatives.
Fin keel
One option is a fin keel. A boat with a fin keel is more manoeuvrable but has less directional stability than a similar boat with a full keel.
The keel is made of iron. Many people prefer lead keel in favour of iron. The main argument is that lead is much heavier than iron and a lead keel can therefore be made smaller which again result in less wet surface, i.e. less drag. In fact iron is quite heavy, just 30% less heavy than lead, so the advantage of a lead keel is often overstated. As the surface of a fin type keel is just a fraction of the total wet surface, the difference between an iron keel and a lead keel can in reality be ignored for cruising yachts.
The boat can only enter major marinas as the draft is about 1.84 - 1.94 meter (6.04 - 6.34 ft) dependent on the load. See immersion rate below.
Fin keel
Another option is a fin keel. The fin keel is the most common keel and provides splendid manoeuvrability. The downside is that it has less directional stability than a long keel.
This keel is also made of iron.
Maxi 108 can enter most marinas as the draft is just about 1.75 - 1.85 meter (5.74 - 6.04 ft) dependent on the load. See immersion rate below.
The boat may be equipped with an inboard Volvo Penta MD11C diesel engine at 23 hp (17 kW). The speed is 8.0 knots.
The transmission is a saildrive.
The fuel tank, which is made of stainless steel, has a capacity of 120.0 liters (31 US gallons, 26 imperial gallons).
Sailing characteristics
This section covers widely used rules of thumb to describe the sailing characteristics. Please note that even though the calculations are correct, the interpretation of the results might not be valid for extreme boats.
What is Capsize Screening Formula (CSF)?
The capsize screening value for Maxi 108 is 1.84, indicating that this boat could - if evaluated by this formula alone - be accepted to participate in ocean races.
What is Theoretical Maximum Hull Speed?
The theoretical maximal speed of a displacement boat of this length is 7.3 knots. The term "Theoretical Maximum Hull Speed" is widely used even though a boat can sail faster. The term shall be interpreted as above the theoretical speed a great additional power is necessary for a small gain in speed.
The immersion rate is defined as the weight required to sink the boat a certain level.
The immersion rate for Maxi 108 is about 207 kg/cm, alternatively 1163 lbs/inch.
Meaning: if you load 207 kg cargo on the boat then it will sink 1 cm.
Alternatively, if you load 1163 lbs cargo on the boat it will sink 1 inch.
Sailing statistics
This section is statistical comparison with similar boats of the same category. The basis of the following statistical computations is our unique database with more than 26,000 different boat types and 350,000 data points.
What is Motion Comfort Ratio (MCR)?
The Motion Comfort Ratio for Maxi 108 is 28.1.
What is L/B (Length Beam Ratio)?
The l/b ratio for Maxi 108 is 3.16.
The ballast ratio for Maxi 108 is 38%.
What is Displacement Length Ratio?
The DL-ratio for Maxi 108 is 238 which categorizes this boat among 'light crusers & offshore racers'.
What is SA/D (Sail Area Displacement ratio)?
The SA/D for Maxi 108 with ISO 8666 reference sail is 16.3, with a 135% genua the SA/D is 19.4.
What is Relative Speed Performance?
The Relative Speed Performance for Maxi 108 is 46
Maintenance
When buying anti-fouling bottom paint, it's nice to know how much to buy.
The surface of the wet bottom is about 36m2 (387 ft2).
Based on this, your favourite maritime shop can tell you the quantity you need.
Note: If you use a paint roller you will need more paint than if you use a paintbrush.
Dimensions of sail for masthead rig.
Are your sails worn out? You might find your next sail here: Sails for Sale
If you need to renew parts of your running rig and is not quite sure of the dimensions, you may find the estimates computed below useful.
| Usage | Length | Diameter | ||
| Mainsail halyard | 32.8 m | (107.6 feet) | 12 mm | (1/2 inch) |
| Jib/genoa halyard | 32.8 m | (107.6 feet) | 12 mm | (1/2 inch) |
| Spinnaker halyard | 32.8 m | (107.6 feet) | 12 mm | (1/2 inch) |
| Jib sheet | 10.8 m | (35.3 feet) | 14 mm | (0.55 inch) |
| Genoa sheet | 10.8 m | (35.3 feet) | 14 mm | (0.55 inch) |
| Mainsheet | 26.9 m | (88.2 feet) | 14 mm | (0.55 inch) |
| Spinnaker sheet | 23.7 m | (77.6 feet) | 14 mm | (0.55 inch) |
| Cunningham | 4.0 m | (13.1 feet) | 12 mm | (1/2 inch) |
| Kickingstrap | 8.0 m | (26.2 feet) | 12 mm | (1/2 inch) |
| Clew-outhaul | 8.0 m | (26.2 feet) | 12 mm | (1/2 inch) |
