Review of PT-22 1/4 Ton

The hull is made of fibreglass. Generally, a hull made of fibreglass requires only a minimum of maintenance during the sailing season. And outside the sailing season, just bottom cleaning and perhaps anti-fouling painting once a year - a few hours of work, that's all.

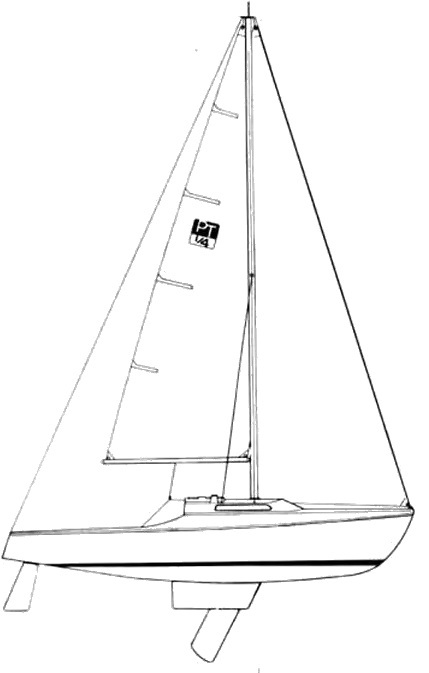

The PT-22 1/4 Ton is built with a masthead rig. The advantage of a masthead rig is its simplicity and the fact that a given sail area - compared with a fractional rig - can be carried lower and thus with less heeling moment.

CentreBoard

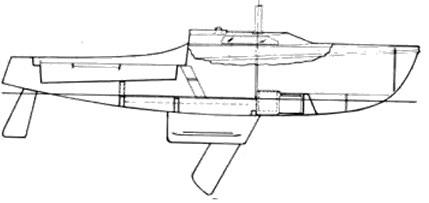

The PT-22 1/4 Ton is built with a centreboard keel. A centreboard keel is a pivoting lifting keel, allowing to sail both coastal and inland waters.

The keel is made of iron. Many people prefer lead keel in favour of iron. The main argument is that lead is much heavier than iron and a lead keel can therefore be made smaller which again result in less wet surface, i.e. less drag. In fact iron is quite heavy, just 30% less heavy than lead, so the advantage of a lead keel is often overstated.

The boat can enter even shallow marinas as the draft is just about 0.71 - 0.81 meter (2.33 - 2.63 ft) dependent on the load. See immersion rate below.

What is Capsize Screening Formula (CSF)?

The capsize screening value for PT-22 1/4 Ton is 2.22, indicating that this boat would not be accepted to participate in ocean races.

What is Theoretical Maximum Hull Speed?

The theoretical maximal speed of a displacement boat of this length is 5.5 knots. The term "Theoretical Maximum Hull Speed" is widely used even though a boat can sail faster. The term shall be interpreted as above the theoretical speed a great additional power is necessary for a small gain in speed.

The immersion rate is defined as the weight required to sink the boat a certain level. The immersion rate for PT-22 1/4 Ton is about 73 kg/cm, alternatively 413 lbs/inch.
Meaning: if you load 73 kg cargo on the boat then it will sink 1 cm. Alternatively, if you load 413 lbs cargo on the boat it will sink 1 inch.

What is L/B (Length Beam Ratio)?

The l/b ratio for PT-22 1/4 Ton is 3.15.

What is a Ballast Ratio?

The ballast ratio for PT-22 1/4 Ton is 38%.

What is Displacement Length Ratio?

The DL-ratio for PT-22 1/4 Ton is 181 which categorizes this boat among 'light racers'.

What is SA/D (Sail Area Displacement ratio)?

The SA/D for PT-22 1/4 Ton with ISO 8666 reference sail is 19.8, with a 135% genua the SA/D is 23.6.

When buying anti-fouling bottom paint, it's nice to know how much to buy. The surface of the wet bottom is about 14m² (150 ft²).
Based on this, your favourite maritime shop can tell you the quantity you need.

Note: If you use a paint roller you will need more paint than if you use a paintbrush.

Dimensions of sail for masthead rig.

Are your sails worn out? You might find your next sail here: Sails for Sale

If you need to renew parts of your running rig and is not quite sure of the dimensions, you may find the estimates computed below useful.

This section is reserved boat owner's modifications, improvements, etc. Here you might find (or contribute with) inspiration for your boat.

Do you have changes/improvements you would like to share? Upload a photo and describe what you have done.

We are always looking for new photos. If you can contribute with photos for PT-22 1/4 Ton it would be a great help.

If you have any comments to the review, improvement suggestions, or the like, feel free to contact us. Criticism helps us to improve.
